Brand Name : | Dorrenhaus, DORHAUS |
Model Number : | D503 |
Certification : | CE EN115, ISO9001 |
Price : | USD8.00-USD8.50/PC |
Payment Terms : | D/P, L/C, , T/T, Western Union, MoneyGram |
Supply Ability : | 20,000pcs per month |
Delivery Time : | 5-6 weeks |

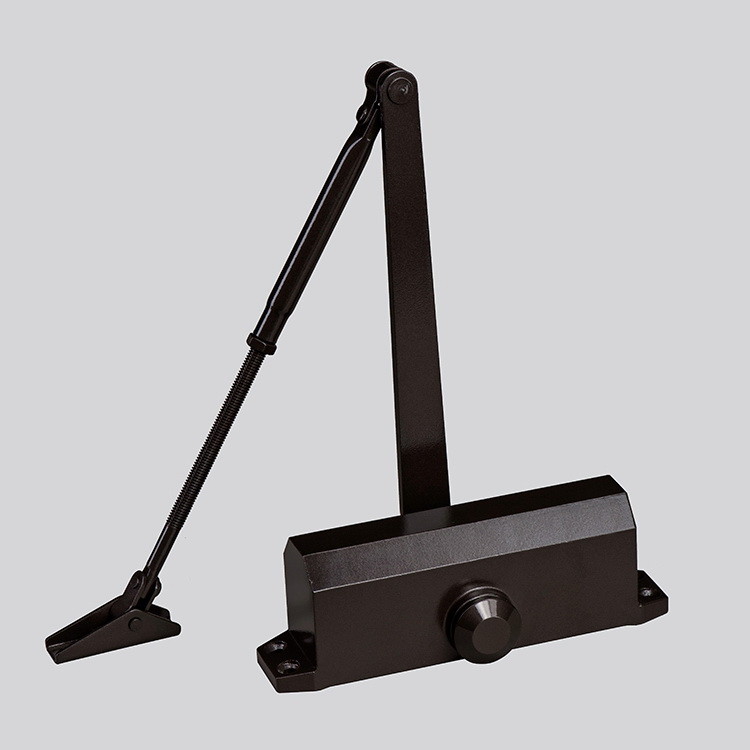

CE Listed Fire Safety Door Closer D503 Light Duty for 40 - 65kg
Residential Door
Ω Light Duty Model D503 for Residential and Commercial Doors
Ω Fire Safety Eurospec Door Closer Max Opening Angle 180º
Ω Hydraulic type, pinion and rack high-heat treatment, needle
bearing

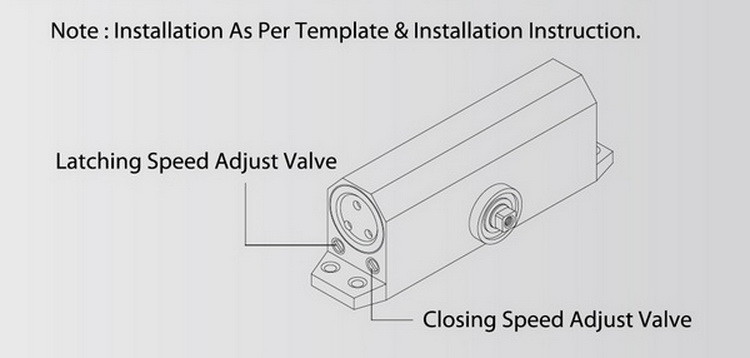

Ω Dual separate valve controls closing / latching speed
Ω Non-handed Installation, applicable for all standard mounting
methods
Ω Fixed Spring Force #3, suitable for max 40 - 65kg door wide 950mm
Ω Hold open arm optional, PA Bracket optional for parallel arm
mounting
Ω Precise casting aluminum closer housing with reinforced steel arm
Ω Comply with BS EN1154 Eurospec, 500,000 life cycles required
Ω Conform to BS EN1634 standard, up to 2 hours Fire safety test
► Stable cooperative partner of universal well-known
door control enterprises
Finishes: Painted - Silver, Bronze, White, Gold, Black, Brown
* SPRING THRUST, EASE BACK: Commercial-level swing arm won’t interfere with opening,
at the same time closing door gradually to allow elegant entrance
and exit
* RELIABLE CERTIFICATION: CE EN1154 the topmost achievable standard for door closing
devices. This model is actually super passed 500,000+ cycles testing.
* GENTLE, NO NEED TO CLOSER BY HAND: let the door close by itself, enjoy automatic
shutdown and lock, maintaining quiet and safety
| Door Width | Door Weight | Closer body | Mounting Dim. |
| 950mm | 40-65kg | 182*41*60.5mm | 166*19mm |
Closing | Max. Door | Guarantee | Fire Rated |
|
size 3 | 180º | 3 years |
|
|
![]() |
