Brand Name : | Dorrenhaus, DORHAUS |
Model Number : | D8016 |
Certification : | ANSI/BHMA A154.6 Grade 1, UL228 |
Price : | US21.00-USD22.50 / set |
Payment Terms : | D/P, L/C, , T/T, Western Union, MoneyGram |
Supply Ability : | 30,000sets / month |
Delivery Time : | 5-6 weeks |

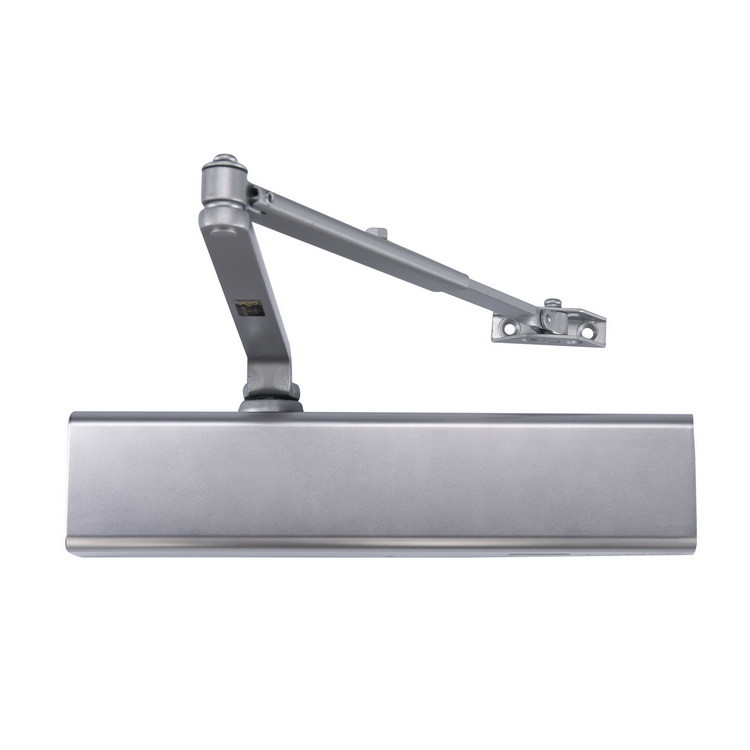

Overhead Size Adjusting Door Closer D8016 Steel Arm American Style ANSI Grade 1
SPECIFICATION:
Finish: Aluminum (ALU), Dark Bronze (DURO), Brown, Gold, Black,
White
Powder Coated Finished Body to enhance corrosion resistance
Feature: ANSI A156.4 Grade 1, Overhead Size Adjusting, American
Style
Material: Cast Aluminum body, Steel arm, Heat Treated Piston and
Pinions.
Adjustable: 3 valves regulating backcheck, closing and latching
speed.

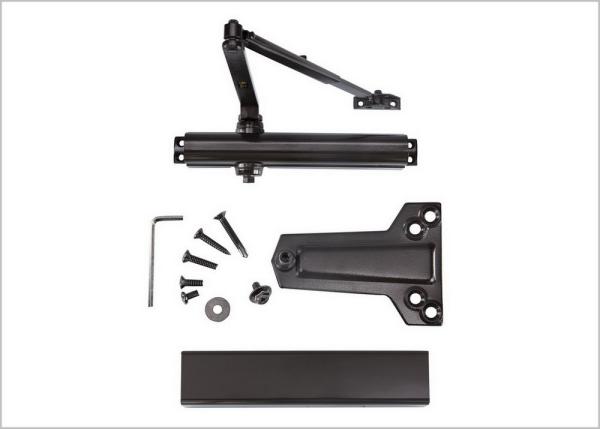

Tri-Pack screw package (Regular, Top Jamb, and Parallel Arm Mount)
Spring Size Adjusting through 1 to 6 (Spring Pre-Set as #3).
Use for doors weight up to 331lbs and 59.1 inches width
TESTED AND CERTIFIED:
ANSI/BHMA 156.4:
UL/cUL Listed:
Grade 1 tested for 2,000,000+ cycles
ADA Compliant
► Long-term cooperative supplier of universal first-rate door control enterprises
* SPRING FORWARD, EASY CLOSING: the commercial-grade arm will not impact opening,
and close the door slow enough to allow for elegant entry and exit
* GENTLE, NO NEED TO CLOSE BY HAND: let the door close by itself, enjoy automatic closing
and latching, maintaining quiet and security.
* FITS WHERE YOU NEED IT: The surface mount design and tri pack options, allow you to install
this over any high-traffic area, while providing complete control
* TRUSTABLE CERTIFICATION: ANSI 156.4 - Grade 1 is the highest standard achievable for
door closers. This model is actually super passed 2 million+ cycles testing.
* SIZE ADJUSTABLE AS PER YOUR REQUIREMENT: Let customers go their own pace. Closing
force of size 1 to 6 is available for various door weight and width.
Type No. | Width Suitable | Door Weight | Closer Size (LxWxH) | Installation Dim. |
D8016 | 850-1500mm | 25-150 kg | 325*62*51.5 mm | 304.8*19mm |
Max Open Angle | Quality Assurance | Life Cycles Required | Fire Rating Standard | Product Standard |
180º | 3 years | 2,000,000+ | UL 10C - 3H | ANSI 156.4 - Grade 1 |
![]() |
