Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail

    Buy cheap Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail from wholesalers

    Buy cheap Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail from wholesalers
    • Buy cheap Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail from wholesalers
    • Buy cheap Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail from wholesalers

    Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail

    Ask Lasest Price
    Brand Name : Dorrenhaus, DORHAUS
    Model Number : D20
    Certification : ISO9001:2015
    Price : USD19.50- USD21.00 / set
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20,000sets per month
    Delivery Time : 5 weeks
    • Product Details
    • Company Profile

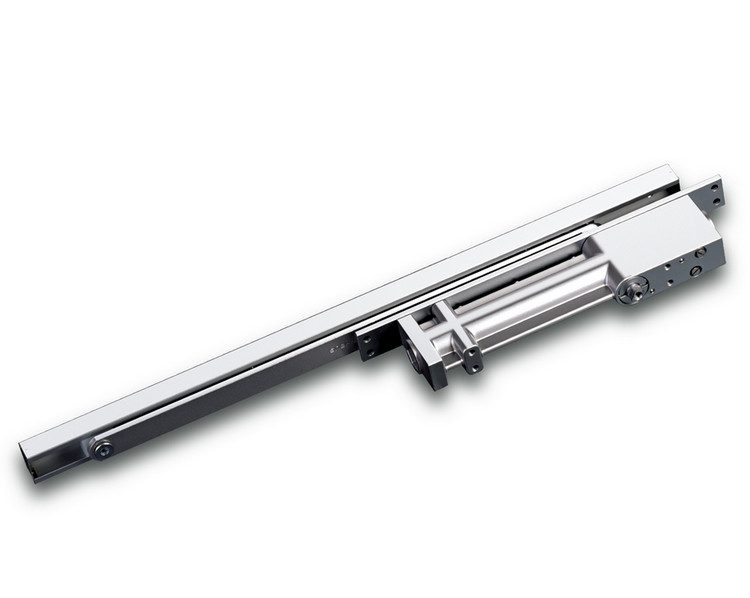

    Easy Open Concealed Automatic Door Closer D20 Smooth Operation Sliding Rail


    Easy Open Concealed Automatic Door Closer Smooth Operation Sliding Rail

    • Smallest concealed door closer for 20-45kg door
    • CE- and UL- certificated | Exporting since 2011
    • Smooth operation, no oil leakage, noiseless

    Dorrenhaus D20 concealed door closer is mainly manufactured with casting

    alluminums, with light weight, strong closer housing and spring, the closing

    force of the model is size EN-2, applicable for 20-45kg door weight or max.

    door width of 850mm.

    1. Hydraulic type, twice high temp. heat treatment needle bearing and pinion

    2. Automatic Concealed Closer Whole Process Control Overhead Mounted

    3. Structure of product: dual Heat Treatment needle bearing, pinion and rack

    4. Core Advantage: Chinese Best-selling type, comply with national standard

    5. Application: lower frequency, such as residential restroom or hotel room door

    6. Material: aluminum cast closer housing, anodized aluminum sliding rail arm

    7. Produced according to UL 228 standard, tested life cycles 150,000 plus,

    8. Whole process controlled started from opening force ended at latching speed

    9. Durable door closer fluid for more smoother operation and constant lubricating

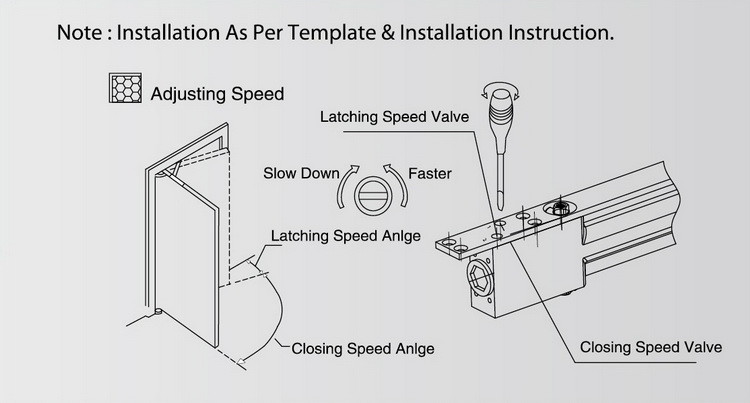

    10. Two speed regulating valves control the closing and Latching speed exactly


    Long-term cooperative vendors of universal first-rate security enterprises


    Painting - Silver, Bronze, White, Gold, Black, Brown


    * SPRING THRUST, EASY CLOSING: commercial-level swing arm will not impact

    opening, meanwhile shut doors gradually to allow for graceful extry and exit

    * SOFT, NO MANUAL CLOSING : let the door close by itself, enjoy self-driven

    shutdown and lock, maintain quiet and sureness.



    Model


    Door Width

    Door Weight

    Closer Body

    (LxWxH)

    Installation

    Dimension


    D20


    850mm25-45kg

    302*28*78mm

    288*14mm
