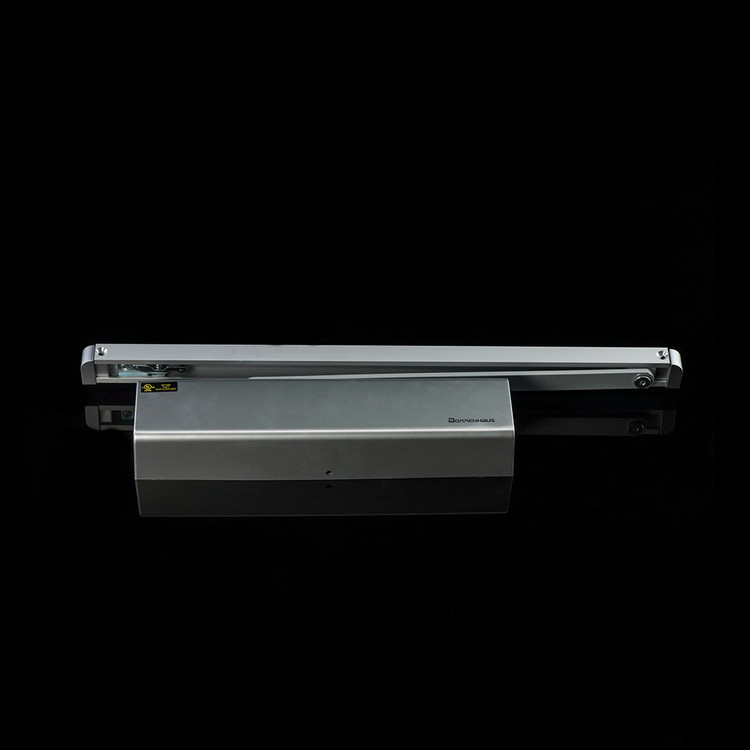

    Backcheck Sliding Arm Door Closer , Commercial Adjusting Internal Door Closer

    Ask Lasest Price
    Brand Name : Dorrenhaus, DORHAUS
    Model Number : D8016H
    Certification : ISO9001:2015
    Price : USD23.00.00-USD24.00/set
    Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 20,000sets / month
    Delivery Time : 5 weeks
    • Product Details
    • Company Profile

    Backcheck Sliding Arm Door Closer , Commercial Adjusting Internal Door Closer


    Backcheck Sliding Arm Door Closer , Commercial Adjusting Internal Door Closer

    • Guide rail mounting, beautiful and generous
    • No oil leakage & abnormal noise, smooth operation
    • ANSI A156.4 Grade 1 standard, safety and reliable


    Dorhaus sliding arm door closer Model D8016H is designed for internal commercial
    application, it is a medium-heavy duty automatic hydraulic door closer. Closer body
    meet the requirements of ANSI A156.4 standard. Size adjustable valves controls
    how easy or hard to open the door.

    Ω Automatic hydraulic door closer with sliding arm for commercial doors
    Ω Casting aluminum body with anodized aluminum sliding track arm
    Ω Adjusting closing and latching speed regulated by dual valves
    Ω Standard adjustable back check available, hold open optional
    Ω Universal application, non-handed installation
    Ω Adjusting spring force #1-6, i.e. closing power #1-4
    Ω Hydraulic fluid for smooth running and constant lubrication.
    Ω Door opening angle: 120 degree
    Ω Non-sized adjusting 1 through 6 with standard back check. opening
    force to be set at size 1, i.e. 20N, meet ADA regulation

    Long-term cooperative manufacturer of global famous door control companies


    Finishes - Silver, Bronze, White, Gold, Black, Brown

    * GENTLE, NO NEED TO CLOSE MANUALLY: let the door do the work, enjoy self-acting
    closing and locking, keep quiet and safety.
    * ADVANCED TECHNOLOGY: even operation, oil tight, no abnormal sound
    * SPRING THRUST, EASY BACK: commercial-level sliding arm won’t interfere with opening,
    while closing doors slowly enough to allow graceful entrance and exit
    * ADJUSTING ACCORDING TO YOUR REQUEST: final user will make their decision,
    Closing force of size 1 to 4 is available for various door weight and width.


    Type No.

    Max. Door
    Width

    Max. Door
    Weight

    Closer Body
    (LxWxH)

    Mounting Dim.


    D8016H

    800-1100mm25-85kg325*62*51.5mm304.8*19mm

    Open Angle
    Limit

    Assurance
    Period

    Production
    Standard

    Tested Life
    Cycles


    Optional Features

    120º3 years

    ANSI A156.4
    Grade 1

    500,000


    Hold Open
