Brand Name : | DORHAUS, Dorrenhaus |
Model Number : | D30 PCP |
Certification : | UL 228, ISO9001:2015 |
Price : | USD21.00- USD22.00 /piece |
Payment Terms : | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 20,000pieces / month |
Delivery Time : | around 35 days |

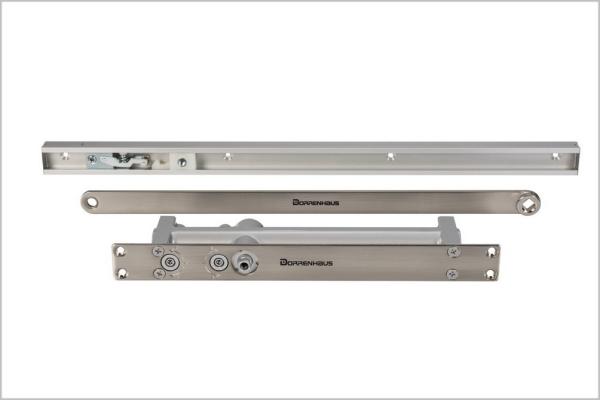

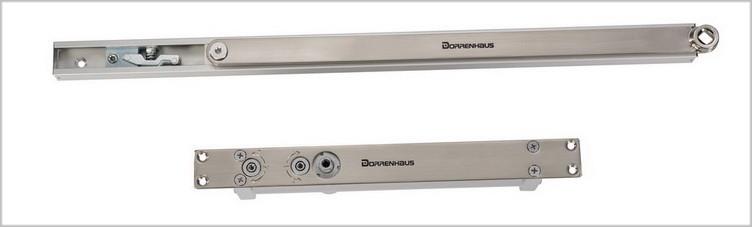

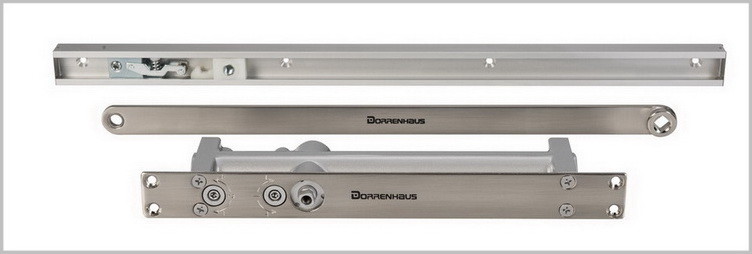

Concealed Automatic Door Closer Chrome Plated UL Listed with
Sliding Arm
New developed concealed door closer D30 PCP, with polished chorme
plating,
looks elegant & high-end. It's of overhead and hydraulic type, mounted inside
wooden or sash metal door. Usually it's for project especially for hotel use.
Ω UL listed concealed automatic door closer with sliding arm
Ω Anodized aluminum sliding track arm with hold open unit

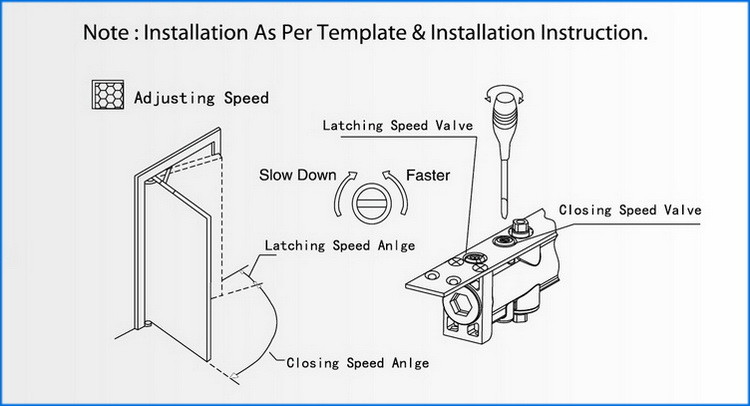

Ω Closing sped and latching speed adjustable
Ω Enforced casting aluminum slim body, with 32mm thickness
Ω UL 228 Certification, life cycles of 100,000+
Ω UL 10C Certification, up to 3 Hours Fire Rating
Ω Fixed closing force size 3, suitable for 40-65kg 950mm width door
Ω Working Temperature Range: -40 to 45 ℃
Ω Max door opening angle: 150 degree
► Long-term cooperative vendors of international well-known door
control brands
Finishes - Polished Chrome Plating, Silver
* GENTLE, NO MANUAL CLOSING required: allow the door do the work, enjoy self-acting
closing and locking, keep quiet and safety.
* SPRING FORWARD, EASY BACK: the commercial-grade arm won’t interfere with opening,
while closing doors slowly enough to allow graceful entrance and
exit
| Max. Door | Door | Body Size | Mounting Dim. |
| 950mm | 40-65kg | 312*32*76mm | 298*20mm |
Opening | Min. Door | Closing Force | Fire Rating | Factory Tested Life Cycles |
150º | 45mm |
| UL 10C - 3h | 200,000 |
![]() |
